Model Number : ER34615
Certification : CE, ROHS, UN38.3
Place of Origin : Wuhan
MOQ : Negotiable
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 10000PCS/30Days
Delivery Time : 20 Days
Packaging Details : Carton
Brand Name : FBATTERY
Product System : LiSOCl2 Battery
Nominal Capacity : 19000mAh(3mA-2.0v-25℃)
Nominal Voltage : 3.6V
Operating Temperature : -60℃~+85℃
Weight : 107g
Applications : Intelligent and Instrument Area, Remote/Wireless, Intelligent Fire Control System
| Model | ER34615 |
| Type | Energy Type |
| Size | D |
| Nominal Capacity | 19000mAh(at 3mA, +25°C/2.0V cut off) |
| Nominal Voltage | 3.6V |
| OCV | 3.66V |
| Cut-off Voltage | 2.0V |
| Dimension | 34(D)*61.5(H)mm |
| Weight | 107g |
| Max. Continuous Current | 230mA |
| Max. Pulse Current | 400mA |
| Operating Temperature | -60°C~+85°C |
| Storage Temperature | Max.30°C |
| Shelf Life | ≥10 years |
| Self Discharge Rate | ≤1% |
| Also Known as | LS33600,LS33600C, TL-4930,TL-2300,TL-5930,SB-D01,SB-D02,SL-780 |

|
|

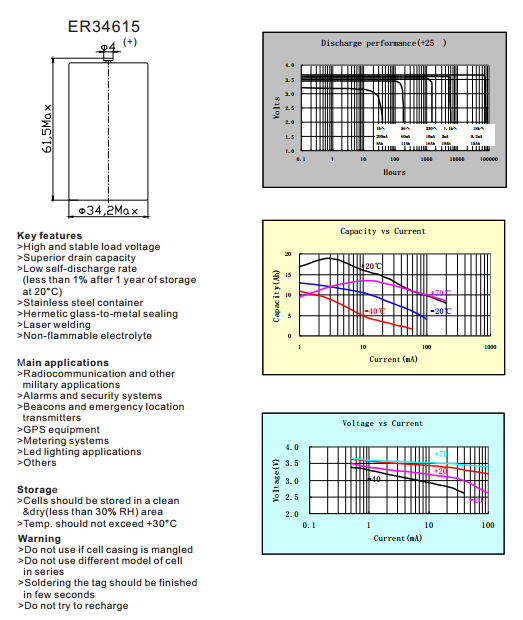

Small Size Lithium Thionyl Chloride Battery ER34615 Superior Drain Capacity Images |
